T201DCH

Call for Price

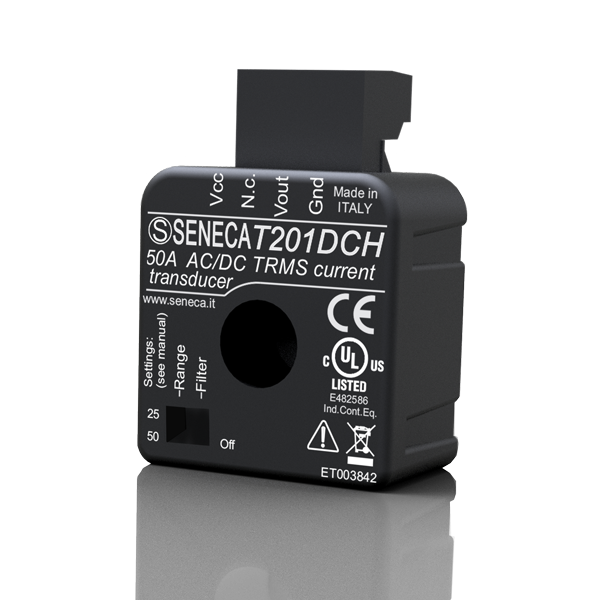

SENECA AC/DC Contactless TRMS Current Transducer

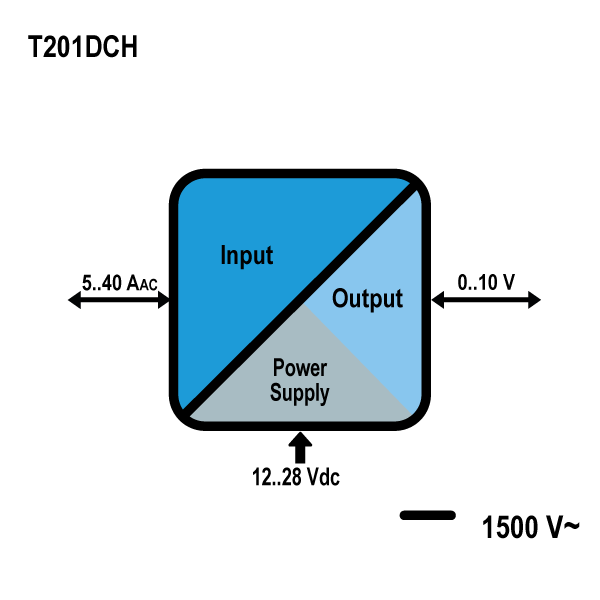

T201DCH is an isolated, contact-less direct and alternating TRMS current transducer. The device’s function and look are very similar to those of an active standard CT, but with the remarkable feature of measuring the continuous component of the pass-trough current. For its electrical endurance, ease of use and compact dimensions,the T201DCH fits every kind of current measurement up to 50 Adc or 50Aac.

Description

ORDER CODE : T201DCH
DESCRIPTION: AC/DC contactless TRMS direct and alternate current transducer
POWER SUPPLY: 11,5..28 Vdc
ACCURACY CLASS: 0,5
MEASURE TYPE: TRMS
INPUT RANGE: 0..25, 0..50 Aac/dc TRMS (settable by DIP switch)
OUTPUT TYPE: 0..10 Vdc (min load 2 kΩ)
HOLE DIAMETER: 12,3 mm

Additional information

Weight 0.1 kg

Download

Catalog – T201 Series Transducers Transformers
