T201DC

Call for Price

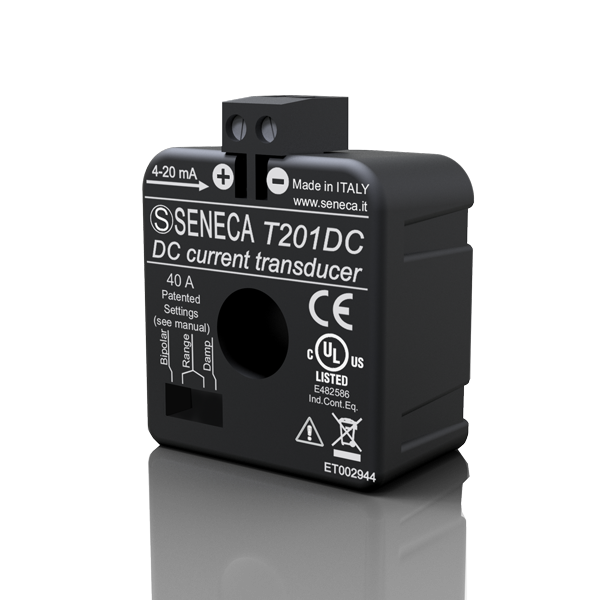

SENECA DC Loop Powered 4..20 Ma Current Transducer

T201DC is an isolated, contact-less loop powered direct current transducer. The device’s function and look are very similar to those of an active standard CT, but with the remarkable feature of measuring the continuous component of the pass-trough current. For its electrical endurance, ease of use and compact dimensions, the T201DC fits every kind of current measurement to 40 Adc.

Description

ORDER CODE : T201DC

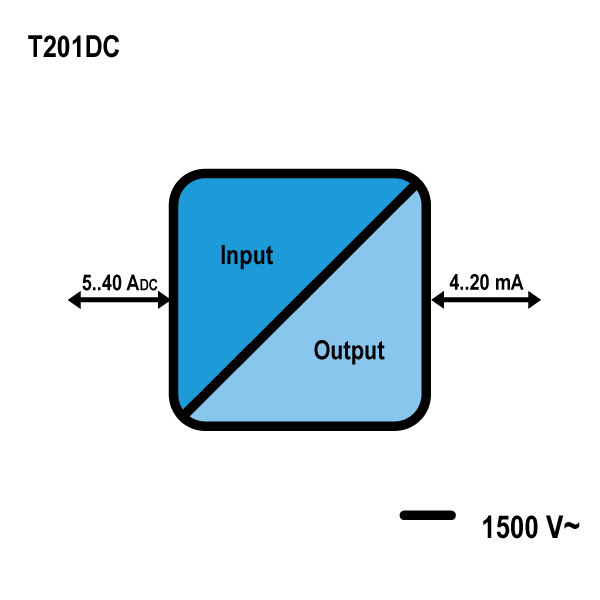

DESCRIPTION: DC Current Transducer to DC current (4..20 mA – loop powered)
POWER SUPPLY: By 4..20 mA loop
INPUT: 8 selectable scales mono/bi-polars via DIP-switch from ±5 A to 40 A (continuous)
ACCURACY: Better than 0,2%
EXTENDED LOOP VOLTAGE: 6..100 V
COMPACT SIZE: 38 x 40 x 20 mm (Ø 12,5 mm)
CONNECTION: Direct without external shunt (also for pulsed currents)

Additional information

Weight 0.06 kg

Download

Catalog – T201 Series Transducers Transformers
