S500-KNX

Call for Price

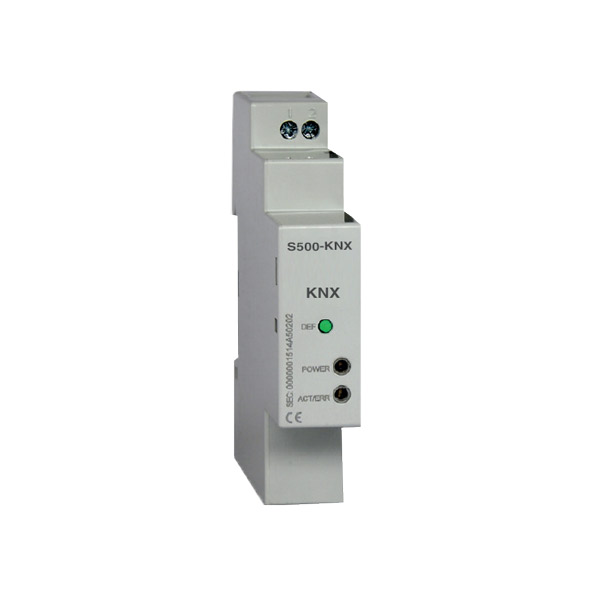

SENECA Konnex Optical Interface Module

KNX module is a domotic solution for energy counter management to optimise the energy saving. KNX is the worldwide standard for home and building control with a single, manufacturer independent design and commissioning tool (ETS). A single twisted-pair (TP) cable is used for energy counter connection, easy and inexpensive to install: no hub or switch is needed between devices.

Description

POWER SUPPLY  Through bus connection TP1
NOMINAL VOLTAGE  24 Vdc
BUS POWER CONSUMPTION  ‹10 mA (Class 10 mA)
COMMUNICATION PROTOCOL  Konnex
CONNECTION PORT  black/red terminals for connection to twisted pair type 1 (TP1)
RECOMMENDED CABLE  KNX/EIB certified 1x2x0,8 mm or 2x2x0,8 mm
COMMUNICATION SPEED  9.600 bps
OPERATING TEMPERATURE  -25°C..+55°C
PROTECTION DEGREE  IP20
POLLUTION DEGREE  II
DIMENSION  18x90x64 mm
NORMS  EN 50491-5-1, EN 50491-5-2, EN 50491-5-3

Additional information

Weight 0.08 kg
