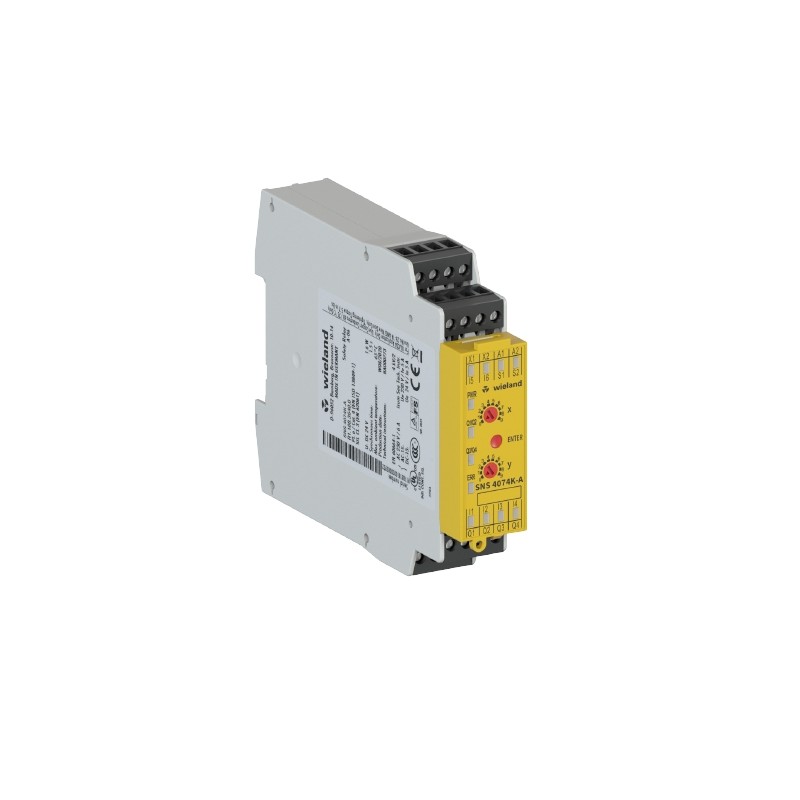

Description
Connection Data
Detachable clamps | Yes |
---|---|
Type of electric connection | Screw connection |
Output Circuit
Enabling paths | solid state (plus), safe output |
---|---|
Signaling paths | solid state (plus), not safe |
Rated switching voltage, enabling paths DC | 30Â V |
Max. thermal current Ith, enabling paths | 2Â A |
Max. total current I² of all current path | 4 A² |
Short-circuit protection (NO), max. fuse insert | short-circuit proof |
Outputs, signalling function, undelayed, with contact | 2 |
Outputs, safe, undelayed, with contact | 4 |
Control Circuit
Nominal output voltage DC | 24Â V |
---|---|
Input current (safety circuit / reset circuit) | 3Â mA |
max. ​peak current (safety circuit / reset circuit) | 3.8 mA |
Min. switch-on time | 100Â ms |
Recovery time tW | >Â 100Â ms |
Release time tR | >Â 100Â ms |
max. ​resistivity, per channel | 100 m |
Evaluation inputs | 2-channel |
Supply Circuit
Nominal voltage UN | DC 24 V |
---|---|
Rated consumption DC | 1.8Â W |
Electrical isolation supply circuit – control circuit | No |
Min. rated DC voltage for controls | 20.4Â V |
Max. rated DC voltage for controls | 30Â V |
