K109LV

Call for Price

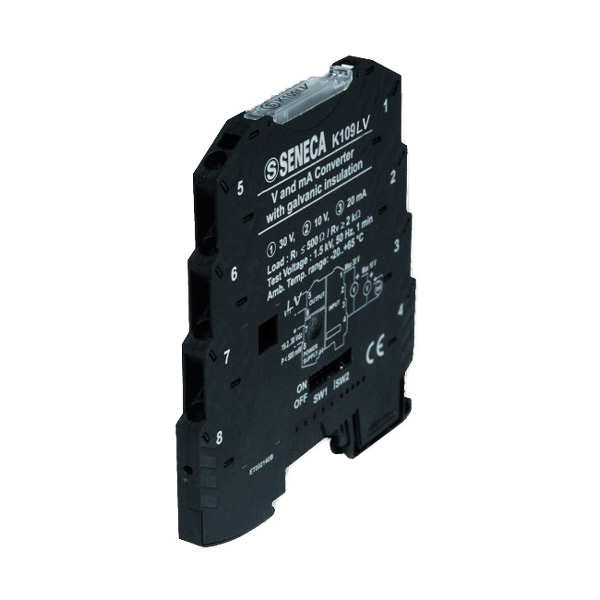

SENECA Current Shunt / V-I Converter

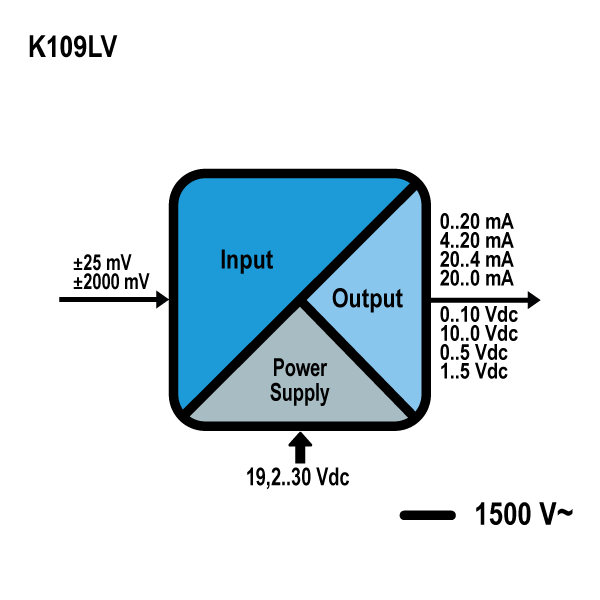

K109LV allows a conversion of the signals with mV (±25 mV..±2000 mV) standard into mA/V standard signals. It’s useful for DC current monitoring through shunts. The power supply connection is available on the terminals or a special connector (K-BUS) allows a distribution of the power supply to the modules via bus connector. A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas.

Description

ORDER CODE : K109LV
DESCRIPTION: Current shunt / V-I converter
INPUT: pre-setted scales form ±25 mV to ±2000 mV
OUTPUT: current 0/4..20, 20..4/0 mA or voltage 0..5/10, 10..0, 1..5 Vdc
POWER SUPPLY: 19,2..30 Vdc
MAX CONSUMPTION: 22 mA
INSULATION: 1,5 kVac, 3 way
RESOLUTION: 14 bit
PRECISION CLASS: 0,1%
POWER SUPPLY TECHNIQUE: direct on spring cage terminale or distributed with K-BUS connector
DIMENSIONS: 6,2 x 93,1 x 102,5 mm

Additional information

Weight 0.075 kg

Download

DataSheet – K109LV

Catalog – K Line Compact Converters
