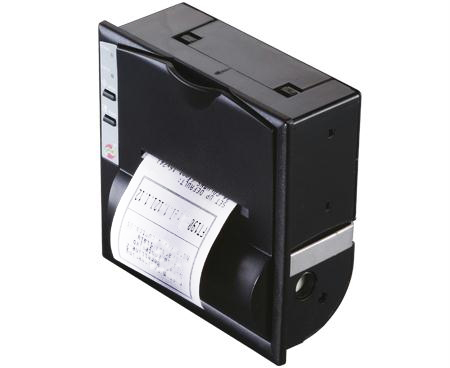

SENECA Printer For S20N1 E S21N1 Batch Controllers

Industrial printer for panel installation. With its RS232 interface is suitable for SENECA batch controllers like S20N1 and S21N1. Easy installation and multipurpose fixing with different panel thicknesses. Behind the frontal panel all the mechanical parts are positioned to facilitate paper loading.

Description

ORDER CODE : FH190-24
DESCRIPTION: Printer for S20N1 e S21N1 batch controllers
POWER SUPPLY: 9..40 Vdc
POWER CONSUMPTION: 1.6 A medium (50% dots on)
PRINTING METHOD: Dots impact matrix (8 pin)
COLUMNS: 24
RESOLUTION: 0,33 x 0,38
PRINTING SPEED (MM/SEC): 67 cps
CHARACTER SET: Normal and expanded
PRINTING FORMAT: Normal, double height and width, bold
PRINTING DIRECTION: Straight, 180°
PAPER WIDTH: 57 mm ÷ 0,5 mm
ROLL DIMENSION: Ø 50 mm max
INTERFACCE: RS232
OPERATION TEMPERATURE: 0°C + 50°C
DIMENSIONS LXHXD: 119x119x45,5 mm
WEIGHT: 362 g
