C22S12HKBD00

Call for Price

Fandis Standard Fans Costech Axial Fans

Type : Ball bearing
Rated Voltage : 115 VAC
Rated Temperature : from (-20 to +70) °C
Standard Packing : 1 unit



Description

Impeller material Fibre reinforced plastic (PA66) blades
Casing material Aluminium alloy die casting UNI5076

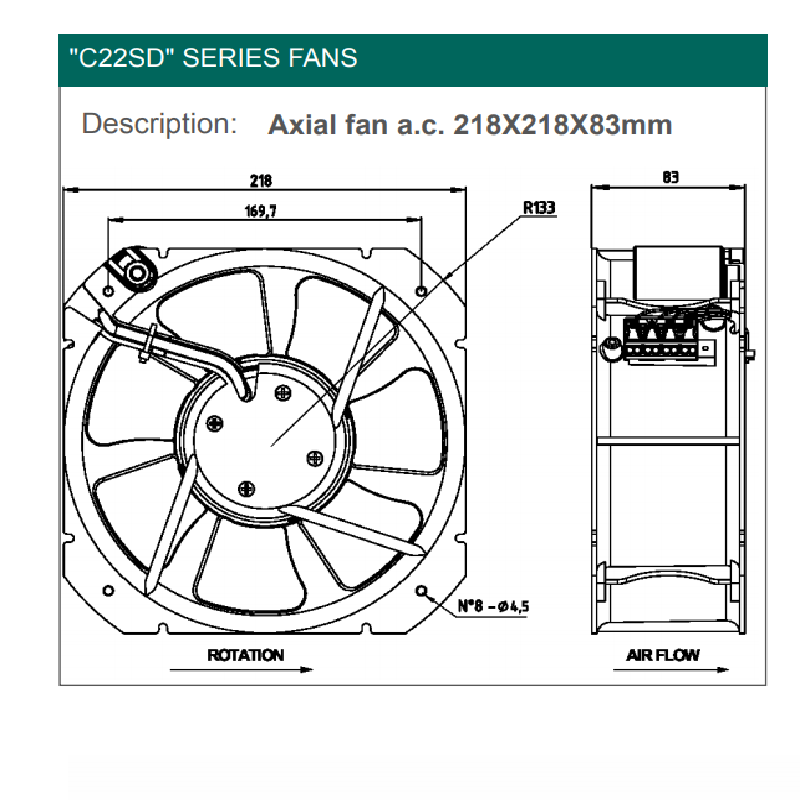

Fixing system No 4 holes Ø4.5
Motor protection Thermal
Rated temperature range from -20°C to +70°C
Motor Lifetime L10 at 25°C (approx.) 63,000 h
Insulation class F
Working class of capacitor Class B for 115V model
Class A for 230V model
Electrical connection by screwless terminal block 2.5 mm² (20 – 14 AWG):
3 poles L-N-PE for 115/230Va.c. models;
4 poles L1-L2-L3-PE for 400Va.c. models

Additional information

Weight 1.9 kg

Download

Catalog – FANDIS AC COSTECH FANS
